Product information
(Buy Solar Panels & Get Battery For FREE)

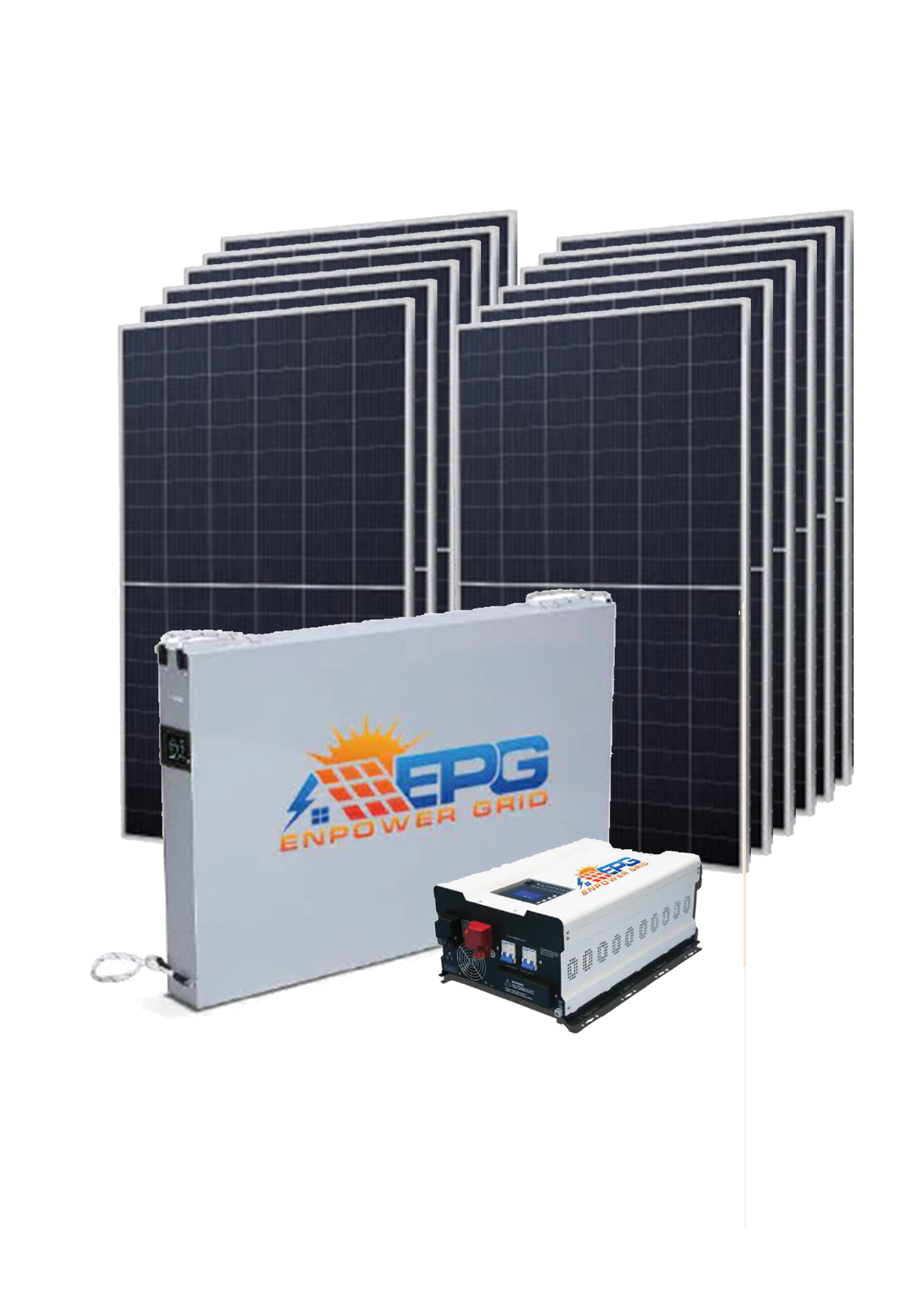

What's Included:
1 Battery - 48V PEAKSHAVER - 276AH 14 KWH
1 Inverter - 48V VARII INVERTER - 100A 12KWH
12 Solar Panels - M8_660EPG_E2 - MONO-FACIAL MODULE

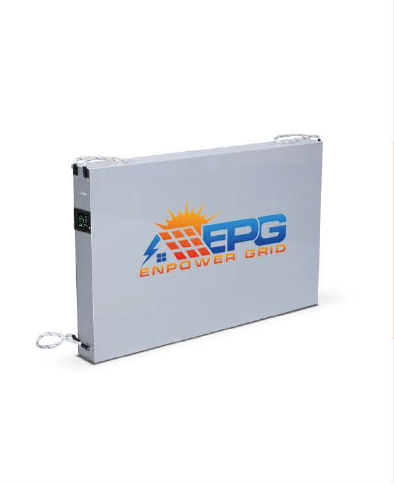

48V PEAKSHAVER - 276AH 14 KWH
A smart solution designed to power all your devices and big appliances in a medium-sized home. This system can work as a strong backup during emergencies or be a fully independent power source from wind or solar, which is great for bigger homes that want to generate their own power. It uses advanced tech for both the inverter and battery, and it’s really affordable in the USA.
The 48V 14KWh PEAKSHAVER Battery has a screen to show you SOC Current and Voltage of the cells and the Battery pack and uses new LFP cells that can last for 10-15 years, depending on how you use them.
The 48V Off-Grid Home PEAKSHAVER System can work with different power sources: AC, wind, solar, a generator, or whatever you like. It charges automatically when it’s connected to shore power. It also has a special inverter that stops power surges in your home, so your gadgets last longer. This battery is very safe and needs no maintenance. It lasts 300% longer than old lead-acid systems and comes with a 10-Year Warranty for each battery pack.
| SKU: | EVO-RHNL-48140-G1 |
| Name: | PEAKSHAVER |
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LFP |
| kWh Capacity: | 14kWh |
| Ah Capacity: | 276Ah |
| Charging Voltage: | 55.2V - 58.4V |
| Max Charge Voltage: | 58.8V |
| Operating Voltage Range: | 44.8V - 58.4V |
| Suggested Low Voltage Cutoff: | 44.8V - 50.8V |
| Cell Configuration: | 16S2P |
| Max Continuous Discharge Current: | 175A |
| Max Continuous Power: | 8960W |
| Max Discharge Peak Current: | 300A (5 seconds) |
| Max Charge Current: | 150A |
| Charge Temperature Range: | 0°C (32°F) / 55°C (131°F) |
| Discharge Temperature Range: | -20°C (-4°F) / 55°C (131°F) |
| Optimal Discharge Temperature Range: | 15°C (59°F) / 35°C (95°F) |
| Storage Temperature Range: | -5°C (23°F) / 35°C (95°F) (Max 6 Months) |
| Weight: | 290lbs (131.5kg) |
| Depth: | 4.4in (111.8mm) |
| Width: | 43.3in (1099.8mm) |
| Height: | 26.7in (678.2mm) |
| Safety Features: | Fuse (300A) & Battery Management System (Over/Under Voltage, Over Current, & Over/Under Temperature Protections) |
| Max Connections: | Up To (8) Parallel |

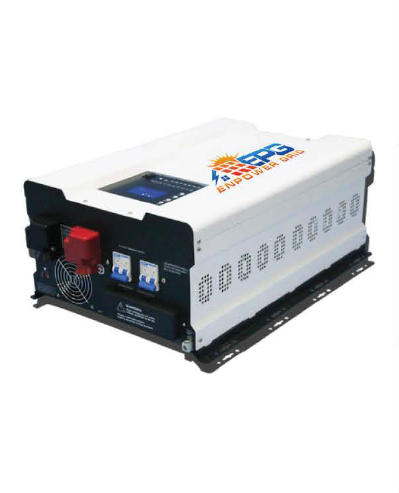

48V VARII INVERTER - 100A 12KWH
Experience the pinnacle of energy efficiency with our cutting-edge 48V Varii Inverter, meticulously designed to facilitate seamless DC to AC power conversion, specifically optimized for off-grid living and remote energy systems. Crafted with precision, this high-capacity inverter serves as the cornerstone of your self-sustaining energy setup, effectively transforming power from solar panels or batteries into a dependable and continuous AC power source.
Tailored to meet the demands of off-grid environments, this robust inverter effortlessly powers an extensive range of household appliances, electronic devices, and essential equipment with unwavering efficiency. With its substantial power capacity, it allows for the seamless operation of multiple devices simultaneously, providing a reliable and uninterrupted energy solution without compromise.
Tailored for sustainability enthusiasts, outdoor adventurers, and those seeking a robust backup power source during emergencies, our 48V Varii Inverter ensures peace of mind and a smooth transition to an independent and eco-friendly energy solution. Built with durability and advanced technology, it stands as the ultimate companion for all your off-grid power requirements, delivering unmatched convenience, reliability, and superior efficiency for all your energy needs.
| System Voltage: | 48V |
| AC Input Voltage: | 180-250V AC |
| AC Output Voltage: | 120V / 240V AC Split Phase @60hz |
| PV Charging Voltage: | 60-180V DC |
| Rated Charge Current: | 100A |
| MPPT PV Charging Current: | 60A / 120A |
| Output Power: | 12000W @220V AC |
| DC Input Voltage: | 48V DC |
| Optimal Temperature Range: | -10°C (14°F) / 35°C (95°F) |
| Weight: | 136lbs (61.9kg) |
| Depth: | 28.4in (720mm) |
| Width: | 18.5in (470mm) |
| Height: | 11.5in (290mm) |
| Safety Features: | Intelligent Temperature Control |

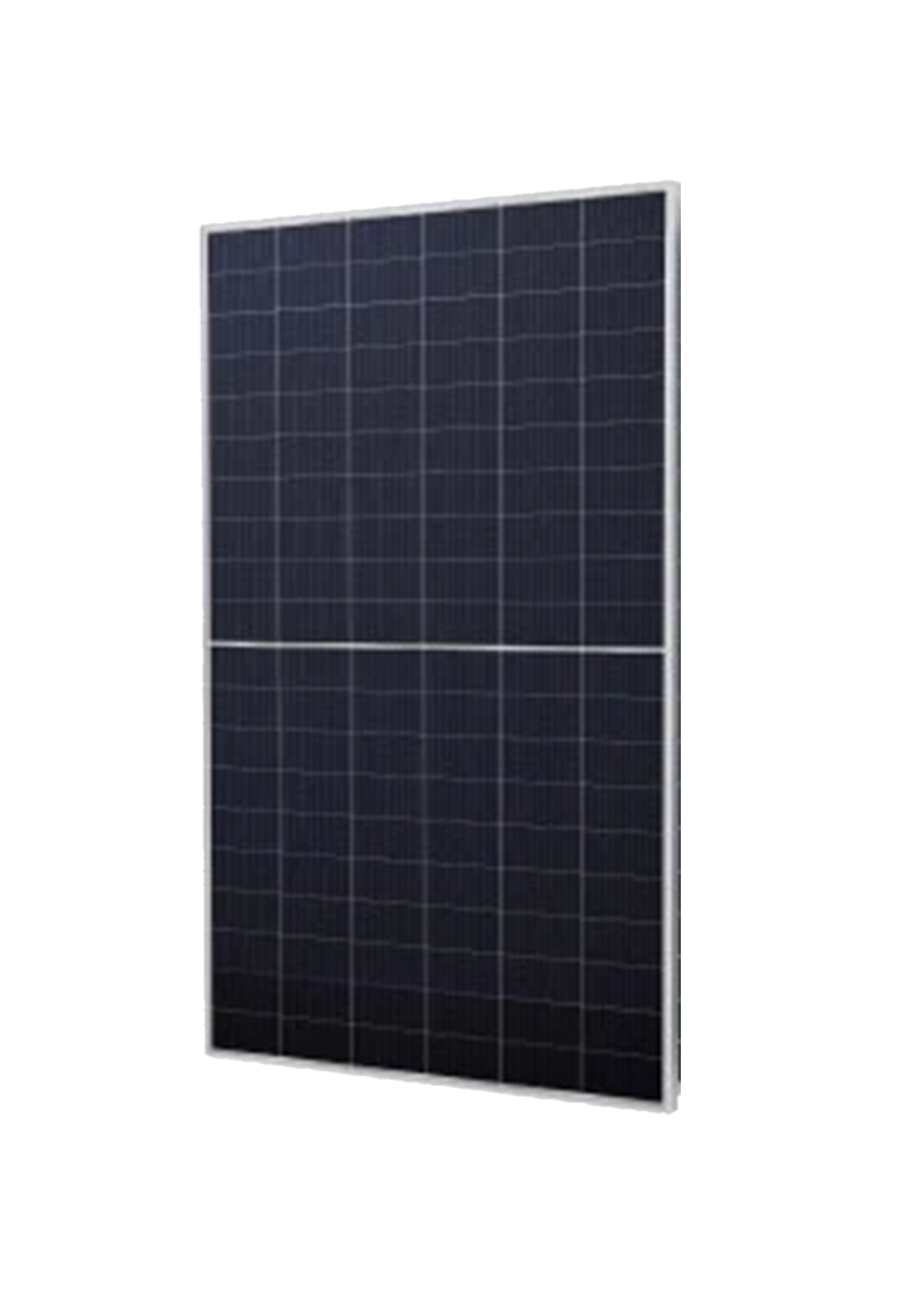

M8 660EPGE2 - MONO-FACIAL MODULE
COMPLETE SYSTEM AND IEC PRODUCT CERTIFICATION
TEC 61215(2016), IEC 61730(2016)
IS09001: 2015. Quality Management System
IS014001: 2015: Environment Management System
IS045001: 2018: 0ccupational Health and Safety Management System
BUILT FOR SUSTAINABILITY
For ground power plants and distributed projects
1HIGH MODULE QUALITY ENSURES LONG-TERM RELIABILITY
Strict selected material.
Advanced Technology.
Leading standard
ADVANCED MODULE TECHNOLOGY
Delivers superior module efficiency. Gallium-doped
Wafer. Non destructive cutting. MBB half-cut
EXCELLENT POWER GENERATION PERFORMANCE
Excellent IAM and Weak light response.
Low temperature ratings.
0.55% linear power decline.
ULTRA HYDROPHILIC
Self-cleaning.
Coating techniques.
| Electrical Characteristics SITO | M8_660EPG_E2 |
| Maximum Power (Pmax) | 660W |
| Power Tolerance | 0-+5W |
| Module Efficiency | 21.25% |
| Maximum Power Current (Imp) | 17.47A |
| Maximum Power Voltage (Vmp) | 37.80V |
| Short Circult Current (Isc) | 18.53A |
| Open Circult Voltage (Voc) | 45.70V |
Values ot Standard Test Conditions STCIAMI.5, tradiance 1000W/m, Cell Temperature 29°C)
| Electerical Characteristics NMOT | M8-660EPG-E2 |
| Maximum Power (Pmax) | 500W |
| Maximum Power Current (Imp) | 14.17A |
| Maximum Power Voltage (Vmp) | 35.30V |
| Short Circuit Current (Isc) | 14.93A |
| Open Circuit Voltage (Voc) | 43.00V |
NMOT(Nominal module operating temperature), Irradiance of 800W/m, AM1.5, Ambient Temperature 20 °C. wind Speed 1m/s.
| Mechanical Characteristics | |
| Cell Type | MonoP-Type,210x210(1)mm, 132(6x22)Half-Cut cells |
| Glass | 3.2mm, High Transmission,Low Iron, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Juction Box | P68 Rated, With Bypass Diodes |
| Dimension | 2384×1303×35mm |
| Output Cable | 4 mm2 (EU), 300 mm,length can be customized |
| Weight | 33.5kg |
| Characterisitics | |
| Temperature Coefficient of Voc | 0.27%/°C |
| Temperature Coefficient of Isc | 0.04%/°C |
| Temperature Coefficient of Pmax | 0.35%/°C |
| Nominal Operating Cell Temperature (NOCT) | 45°C+-2°C |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.
| Packing Information | |
| Container | 40' HQ |
| Pallets per Container | 18 |
| Pieces per Container | 558 |
| Maximum Ratings | |
| Operating Temperature | -40°C~ +85°C |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 35A |
