Product information
COMPLETE SYSTEM AND IEC PRODUCT CERTIFICATION
TEC 61215(2016), IEC 61730(2016)
IS09001: 2015. Quality Management System
IS014001: 2015: Environment Management System
IS045001: 2018: 0ccupational Health and Safety Management System
BUILT FOR SUSTAINABILITY
For ground power plants and distributed projects
1HIGH MODULE QUALITY ENSURES LONG-TERM RELIABILITY
Strict selected material.
Advanced Technology.
Leading standard
ADVANCED MODULE TECHNOLOGY
Delivers superior module efficiency. Gallium-doped
Wafer. Non destructive cutting. MBB half-cut
EXCELLENT POWER GENERATION PERFORMANCE
Excellent IAM and Weak light response.
Low temperature ratings.
0.55% linear power decline.
ULTRA HYDROPHILIC
Self-cleaning.
Coating techniques.

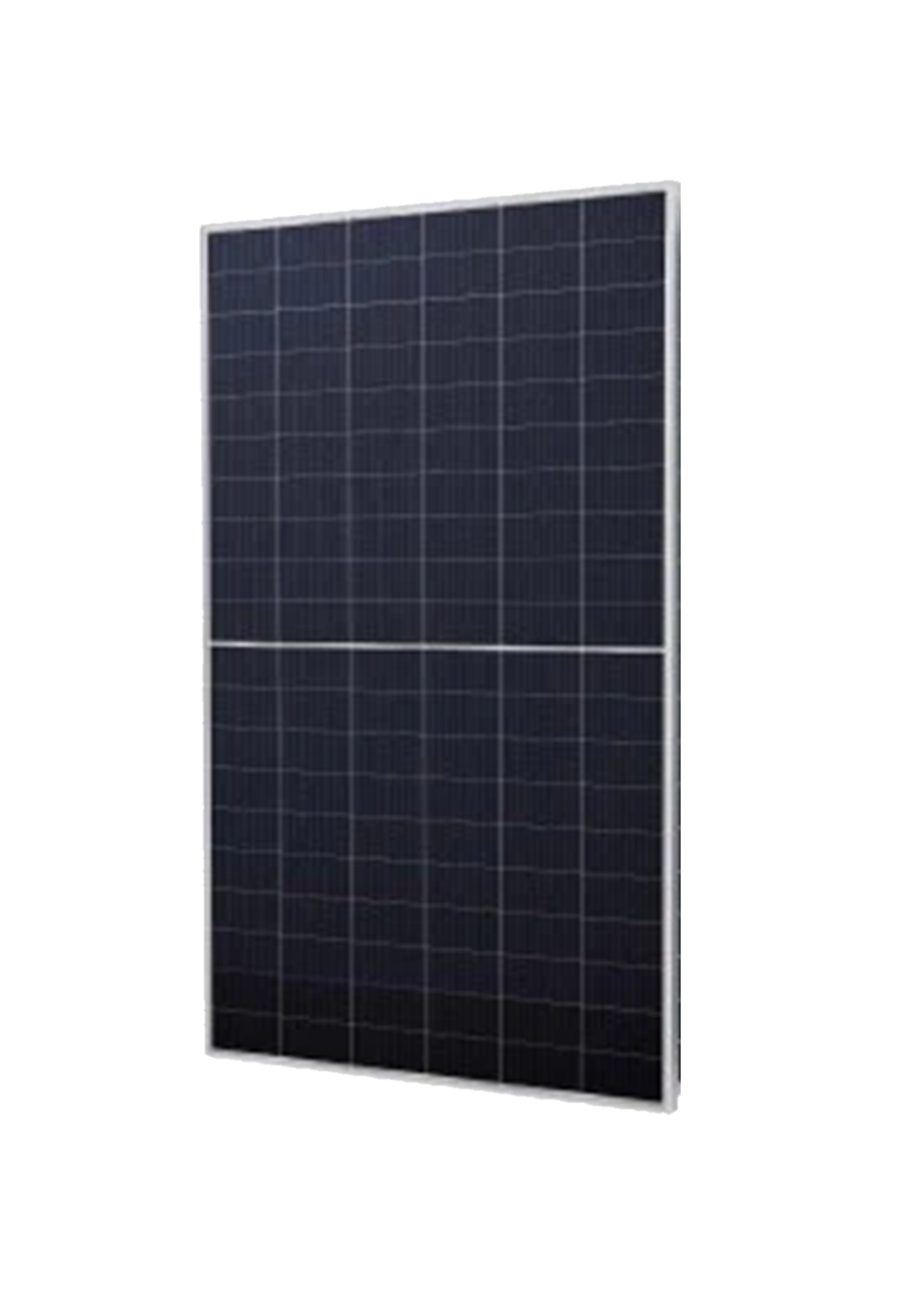

| Electrical Characteristics SITO | M8_660EPG_E2 |
| Maximum Power (Pmax) | 660W |
| Power Tolerance | 0-+5W |
| Module Efficiency | 21.25% |
| Maximum Power Current (Imp) | 17.47A |
| Maximum Power Voltage (Vmp) | 37.80V |
| Short Circult Current (Isc) | 18.53A |
| Open Circult Voltage (Voc) | 45.70V |
Values ot Standard Test Conditions STCIAMI.5, tradiance 1000W/m, Cell Temperature 29°C)
| Electerical Characteristics NMOT | M8-660EPG-E2 |
| Maximum Power (Pmax) | 500W |
| Maximum Power Current (Imp) | 14.17A |
| Maximum Power Voltage (Vmp) | 35.30V |
| Short Circuit Current (Isc) | 14.93A |
| Open Circuit Voltage (Voc) | 43.00V |
NMOT(Nominal module operating temperature), Irradiance of 800W/m, AM1.5, Ambient Temperature 20 °C. wind Speed 1m/s.
| Mechanical Characteristics | |
| Cell Type | MonoP-Type,210x210(1)mm, 132(6x22)Half-Cut cells |
| Glass | 3.2mm, High Transmission,Low Iron, Tempered Glass |
| Frame | Anodized Aluminum Alloy |
| Juction Box | P68 Rated, With Bypass Diodes |
| Dimension | 2384×1303×35mm |
| Output Cable | 4 mm2 (EU), 300 mm,length can be customized |
| Weight | 33.5kg |
| Characterisitics | |
| Temperature Coefficient of Voc | 0.27%/°C |
| Temperature Coefficient of Isc | 0.04%/°C |
| Temperature Coefficient of Pmax | 0.35%/°C |
| Nominal Operating Cell Temperature (NOCT) | 45°C+-2°C |
Remark: Electrical data in this catalog do not refer to a single module and they are not part of the offer. They only serve for comparison among different module types.
| Packing Information | |
| Container | 40' HQ |
| Pallets per Container | 18 |
| Pieces per Container | 558 |
| Maximum Ratings | |
| Operating Temperature | -40°C~ +85°C |
| Maximum System Voltage | 1500VDC |
| Maximum Series Fuse Rating | 35A |
