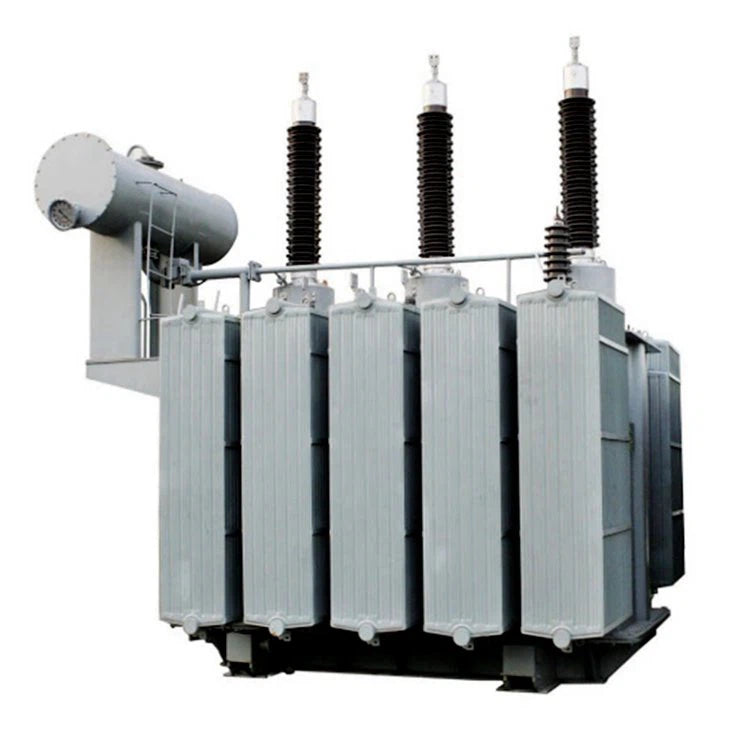

30MVA High Voltage Oil Transformer

30MVA High Voltage Oil Transformer

Transformer Primary Voltage: 34500 Volts Delta, 150 kV BIL
Transformer Secondary Voltage: 12470Y/ 7200 Volts, 60 kV BIL
Tap Locations: 2 Above, 2 Below @ 2.5%
HV Bushings: (3) 2-hole spade HV bushings in full height ATC
MV Bushings: (4) 4-hole spade LV bushings in full height ATC
Fluid: Mineral Oil
Warranty: 3 Years

Higher Voltage Options Also Available
